4 metal towers of YP.P.A. Radar

PROJECT:  4 metal towers of YP.P.A. Radar

CLIENT: Triton Consulting Engineers Ltd
ASSOCIATED OFFICES: Office G. Ioannidis

BRIEF DESCRIPTION:

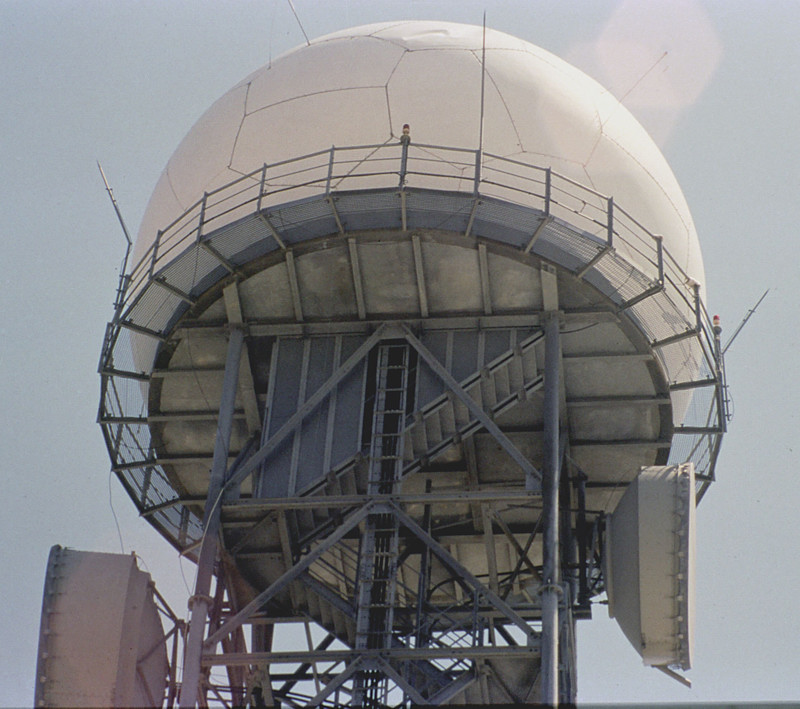

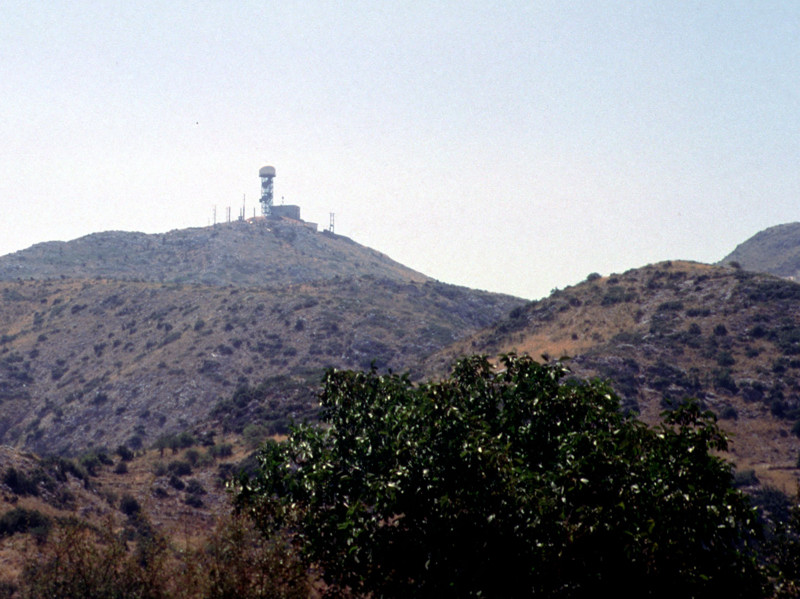

Full design of 4 steel radar towers, with reinforced concrete foundation, for the installation of Thomson antennas. The projects are as follows:

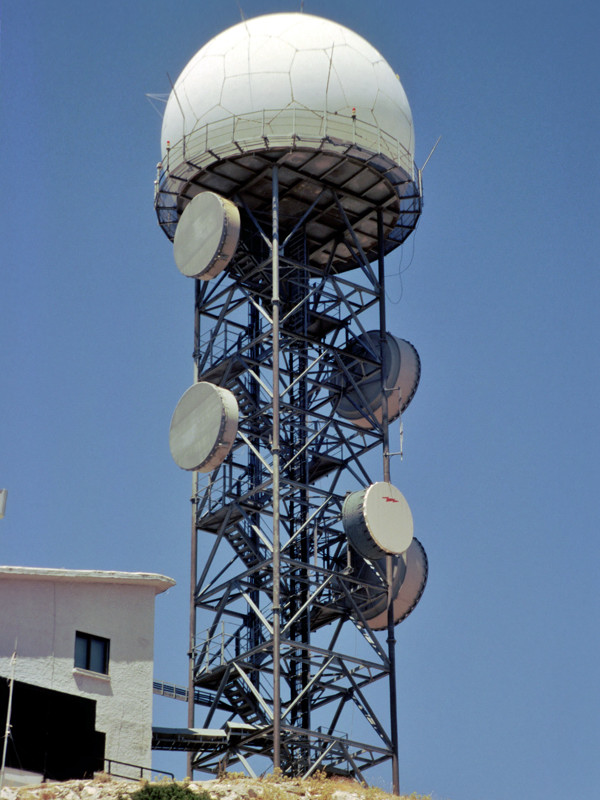

  • Tower radar Lefkada: Dimensions in plan 5.0x5.0m, radome seating level +25.80. The project includes radome, enclosed staircase and provisions of supports for telecommunications antennas.
  • Tower radar Pelion: Dimensions in plan 5.0x5.0m, radome seating level +26.80. The project includes radome and enclosed staircase.
  • Tower radar Cythera: Dimensions in plan 5.0x5.0m, radome seating level +10.80. The project includes radome and enclosed staircase.
  • Tower radar Hymettus: Dimensions in plan 6.0x6.0m, level seating radome +32.60. The project includes radome and enclosed staircase.
The project has been completed (except Hymettus) and is in operation.


Design year: 1992
Design standards: DIN, BS,  Thomson specification
